Product Feature

Multiple Options

The product offers a variety of configuration options, allowing users to customize solutions based on their needs.

High Adaptability

This sanitary-grade pharmaceutical homogenizer is highly adaptable, capable of meeting the processing requirements of various pharmaceutical products.

Triple Safety Protection

· Pressure Protection: The machine automatically shuts down when the pressure exceeds 10% of the sensor's set range, safeguarding itself.

· Overload Protection: The built-in frequency converter provides protection in case of overload.

· Pressure Relief Protection: Equipped with a safety valve, the machine relieves pressure when it becomes too high, ensuring safety.

Technical Parameters

Challenge Bloom 10

Item	Description
Operating Voltage	220V±10%,50Hz
Temperature	10-40°C
Humidity	20-80%
Processed Products	Cell disruption, nano-emulsions, suspension preparation, etc.
Product Process Viscosity	< 5000 cPs
Maximum Feed Particle Size	< 500 microns
Output	10L/H (flow rate adjustable)
Minimum Batch Volume	15 milliliters
Homogenization Stages	1
Maximum Design Pressure	2000 bar
Maximum Operating Pressure	1600 bar
Variable Frequency Flow Control System	Equipped with a frequency converter for adjustable flow rate
Pressure Gauge	High-precision pressure sensor + display panel
Residue	Zero residue (built-in exhaust valve for complete emptying)
Power Source	220V
Cooling System	Built-in cooling system for sample cooling at the break-up point
Chiller	A low-temperature cooling water circulation unit for sample cooling
Main Motor	Swiss ABB 1.5kW
Voltage and Frequency	220V, 50Hz
Safety Protection System	The safety pressure can be set as needed. If the average pressure exceeds the set value, the machine will automatically shut down to prevent damage from sudden pressure spikes.
Power System Structure	The power system features a crankshaft and connecting rod structure, ensuring the plunger moves reciprocally with the crankshaft for smooth and stable operation.
Quality Standard	EU CE certification

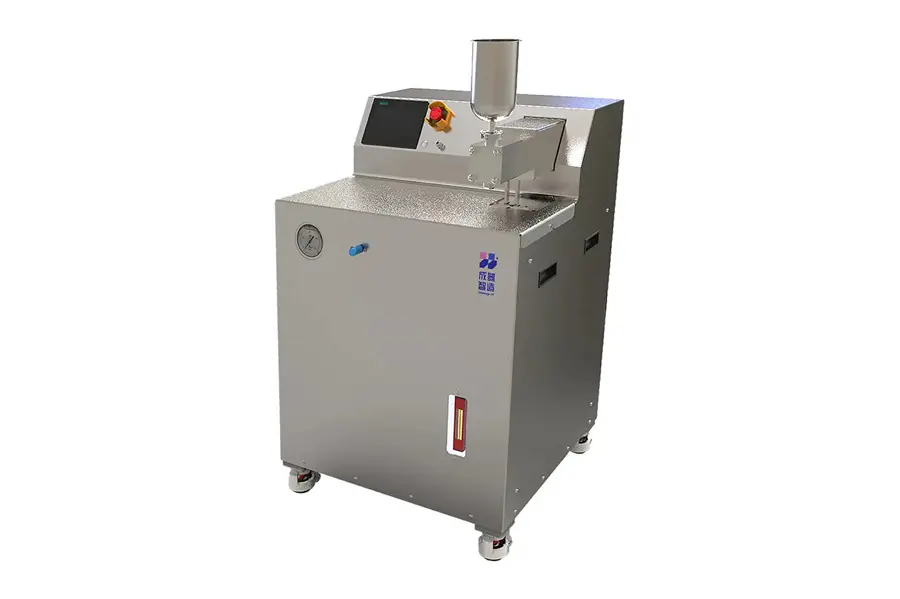

Challenge Bloom 12-150

Maximum Operating Pressure	1200 bar
Product Throughput	120-150 L/H
Maximum Design Pressure	1500 bar
Minimum Throughput	5 L
Motor Power	11 kW / 380V
Material Consumption	No residue

Challenge Bloom Series Specifications and Models

	Model	Processing Flow	Design Pressure

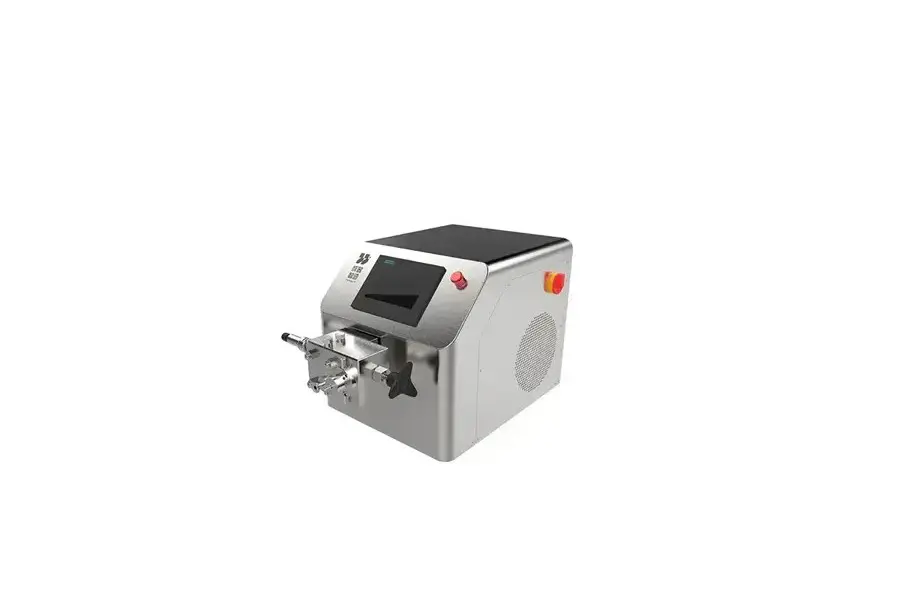

Lab Scale	Bloom10	10L/H	2000Bar
	Bloom15	10L-15K/H	1500Bar
	Bloom30	30L/H	1200Bar

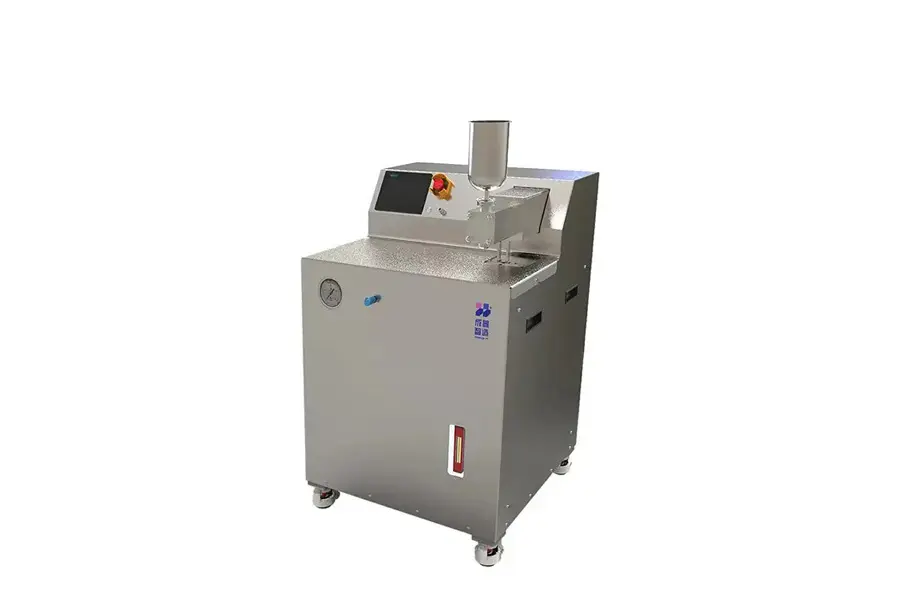

Multi-functional Pilot Scale	Bloom40	30L-40L/H	1800Bar
Multi-functional Pilot Scale	Bloom60	50L-60L/H	1000Bar
Large-Scale Production	Bloom08-10	60L-80L/H	2000Bar
	Bloom12-150	120L-150L/H	1500Bar
	Bloom12-300	260-300L/H	1200Bar
