Challenge Hope Tangential Flow Filtration(TFF) Systems

The Challenge Hope Tangential Flow Filtration (TFF) systems offer a highly integrated, user-friendly solution for fully automated tangential flow filtration. Designed for versatility, they serve a broad spectrum of industries, including pharmaceuticals, food production, environmental protection, and fine chemicals. Tailored to meet the process development and research demands of enterprises, universities, and research institutes, these systems offer advanced automation, intelligent functionality, and cost-effectiveness. They deliver exceptional performance in a variety of applications.

    Features

    01

    An excellent partner for process exploration

    With stability that rivals industrial production systems and highly flexible functionality, it empowers users to efficiently and effortlessly conduct process exploration.

    04

    Application in various fields

    Application: biopharmaceuticals, food industry, environmental water treatment, and membrane process validation...

    02

    Electronic data recording and processing

    Automatically record all key operational data (including but not limited to flow rate, TMP, and flux). With the intelligent data analysis module in the software, corresponding charts and comparative data parameters can be generated at any time and easily exported. The data is comprehensive, allowing for the generation of reports with a single click.

    05

    Intelligent, automated operation for easy-use and highly efficient

    The system is designed with a range of units, making it user-friendly and featuring several built-in method modes. Users also have the flexibility to create custom methods manually, which can be executed automatically, facilitating fully automated operations throughout the entire experiment.

    03

    Flexible and Simple Membrane Filtration Processes

    Compatible with mainstream brands of hollow fiber membranes and plate-type membrane packages. By replacing the tubing, it can accommodate a wider membrane area, offering flexibility and simplicity in filtration processes.

    06

    Compact and streamlined design

    The shell is made of high-performance ABS material, which is corrosion-resistant, simple in design, compact, lightweight, aesthetically pleasing, and easy to operate and clean.

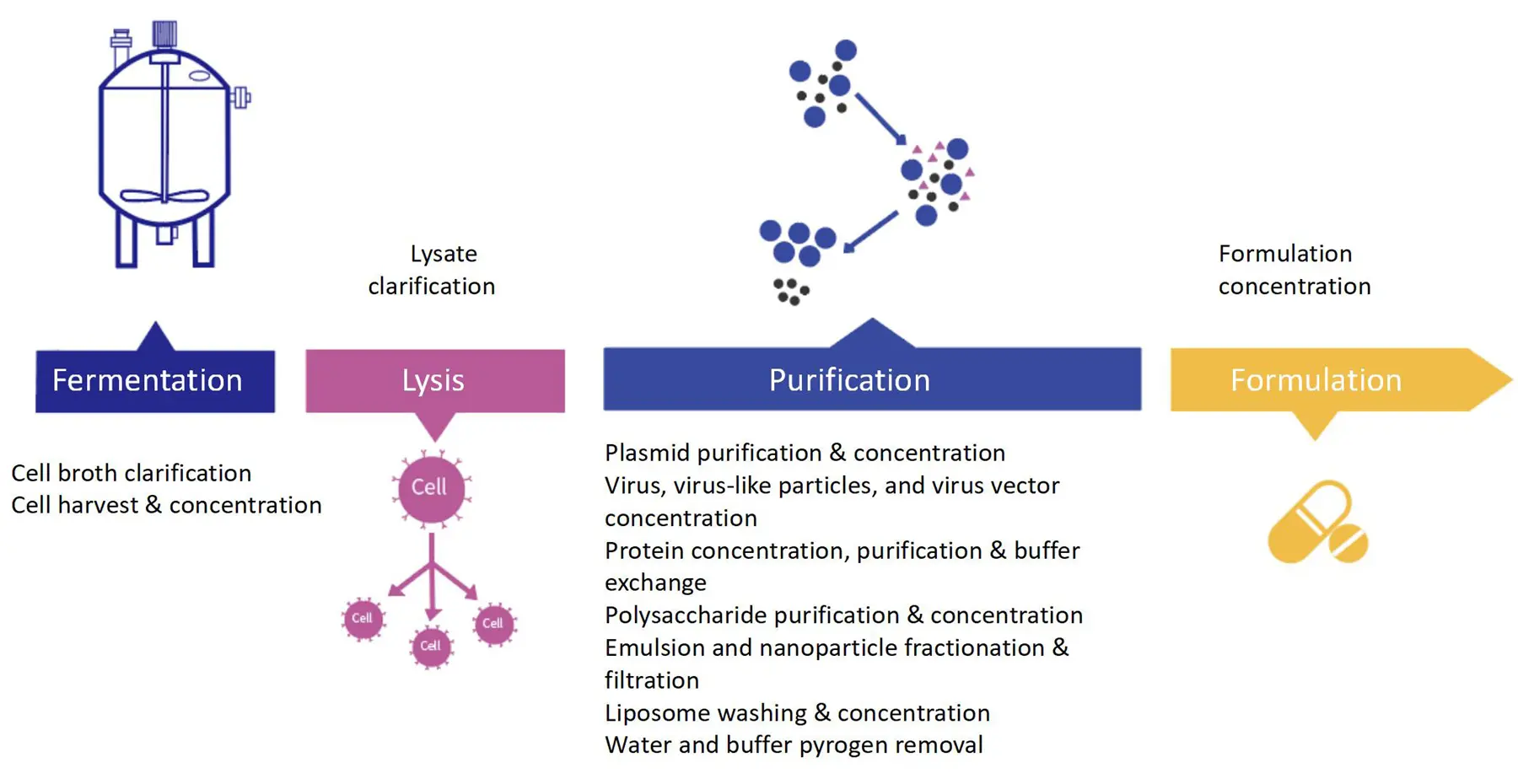

    Typical Application

    Challenge Hope

    Challenge Hope 1P Specifications

    Item Description Specifications or Descriptions
    Filter Filter type Hollow fiber cartridges Flat plate cassettes
    Recommended processing capacity 20ml-2L 20ml-2L
    Recommended membrane area 50cm²-0.1m² 50cm²-0.1m²
    Basic Accessories Feed pump Peristaltic pump, MAX flow 1 LPM, compatible with 13#, 14#,16#, 25# tubing sizes.
    Pressure sensor PEEK material; Pressure range:0 ~ 145 psi (0~ 10 bar)
    HMI IPC, stable and reliable; Pre-installed with Challenge Navigator software
    Automatic regulating valve(Retentate) Automatic adjustment of Transmembrane Pressure(TMP)
    Weighing unit  Main circulation and permeate weighing range: 0-7 kg, with a visual reading of 0.1 g (Multiple specifications available)
    Magnetic stirring Integrated with the main circulation weighing system, adjustable speed, real-time parameter recording
    Liquid Container Replaceable, PSU sanitary-grade, low-residue
    Pipe Based on the process requirements, a variety of platinum-cured silicone hoses and thermoplastic pipelines that conform to the specified standards can be utilized.
    Holder Integrated hollow fiber cartridge holder, compact yet efficient in space utilization
    Optional Accessories Transfer  pump Peristaltic pump ,Max flow 1LPM,Compatible with 13#, 14#,16#, 25# tubing sizes.
    Permeate pump Peristaltic pump ,Max flow 1LPM,Compatible with 13#, 14#,16#, 25# tubing sizes.
    multi-channel liquid inlet valve Options for multi-channel liquid inlet valves to enable automatic switching of sample inflow
    pH 0-14
    Conductivity, and temperature sensors Temperature compensation,0.02-200ms/cm
    Holder Standard configuration includes a hollow fiber cartridge holder, with the option to additionally equip or connect with various types of membrane cassette holder provided by the customer
    Environment Required Temperature 0-40℃
    Humidity 10%-90%
    Body Design IP33, wipeable and washable
    Power Supply 1.1A,220V,50/60HZ
    Dimension Feed unit 465x420x566(L*W*H)
    Transfer unit 175x179x102(L*W*H)
    Permeate unit 175x179x102(L*W*H)
    Weight 35kg
    Supporting Services Installation, commissioning, and training services, lasting 1-2 days, will be conducted either on-site or online.
    1-2 days of 3Q verficiation will be conducted either on-site or online, depending on the purchase of the 3Q service.
    Upon purchasing an annual maintenance contract, monthly and annual maintenance services, either online or on-site, will be provided.
